rawElementElementElement functions can be customized with set and show rules.
set and show rules.Raw text with optional syntax highlighting.
Displays the text verbatim and in a monospace font. This is typically used to embed computer code into your document.
Example

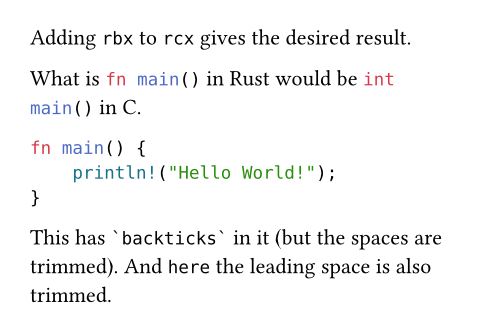

Adding `rbx` to `rcx` gives
the desired result.
What is ```rust fn main()``` in Rust
would be ```c int main()``` in C.
```rust
fn main() {
println!("Hello World!");
}
```
This has ``` `backticks` ``` in it
(but the spaces are trimmed). And
``` here``` the leading space is
also trimmed.
You can also construct a raw element programmatically from a string (and
provide the language tag via the optional lang argument).
#raw("fn " + "main() {}", lang: "rust")
Syntax
This function also has dedicated syntax. You can enclose text in 1 or 3+
backticks (`) to make it raw. Two backticks produce empty raw text.
This works both in markup and code.
When you use three or more backticks, you can additionally specify a language tag for syntax highlighting directly after the opening backticks. Within raw blocks, everything (except for the language tag, if applicable) is rendered as is, in particular, there are no escape sequences.
The language tag is an identifier that directly follows the opening backticks only if there are three or more backticks. If your text starts with something that looks like an identifier, but no syntax highlighting is needed, start the text with a single space (which will be trimmed) or use the single backtick syntax. If your text should start or end with a backtick, put a space before or after it (it will be trimmed).
ParameterParameterParameters are input values for functions. Specify them in parentheses after the function name.
raw(,,lang:,,,,)->textRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
textThe raw text.
You can also use raw blocks creatively to create custom syntaxes for your automations.
Show example
// Parse numbers in raw blocks with the
// `mydsl` tag and sum them up.
#show raw.where(lang: "mydsl"): it => {
let sum = 0
for part in it.text.split("+") {
sum += int(part.trim())
}
sum
}
```mydsl
1 + 2 + 3 + 4 + 5
```
blockSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
blockset rule, changing the default value used thereafter.Whether the raw text is displayed as a separate block.
In markup mode, using one-backtick notation makes this false.
Using three-backtick notation makes it true if the enclosed content
contains at least one line break.
Show example
// Display inline code in a small box
// that retains the correct baseline.
#show raw.where(block: false): box.with(
fill: luma(240),
inset: (x: 3pt, y: 0pt),
outset: (y: 3pt),
radius: 2pt,
)
// Display block code in a larger block
// with more padding.
#show raw.where(block: true): block.with(
fill: luma(240),
inset: 10pt,
radius: 4pt,
)

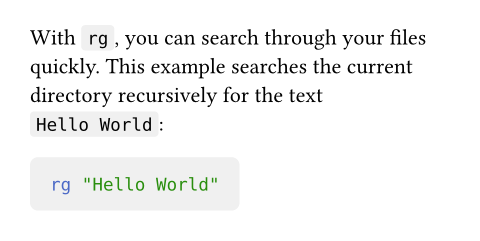

With `rg`, you can search through your files quickly.
This example searches the current directory recursively
for the text `Hello World`:
```bash
rg "Hello World"
```
falseThe language to syntax-highlight in.
Apart from typical language tags known from Markdown, this supports the
"typ", "typc", and "typm" tags for
Typst markup,
Typst code, and
Typst math, respectively.
Show example

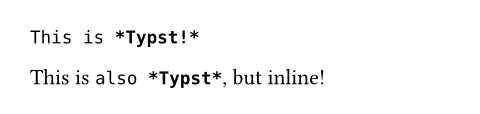

```typ
This is *Typst!*
```
This is ```typ also *Typst*```, but inline!
nonealignSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
alignset rule, changing the default value used thereafter.The horizontal alignment that each line in a raw block should have.
This option is ignored if this is not a raw block (if specified
block: false or single backticks were used in markup mode).
By default, this is set to start, meaning that raw text is
aligned towards the start of the text direction inside the block
by default, regardless of the current context's alignment (allowing
you to center the raw block itself without centering the text inside
it, for example).
Show example
#set raw(align: center)
```typc
let f(x) = x
code = "centered"
```
startAdditional syntax definitions to load. The syntax definitions should be
in the sublime-syntax file format.
You can pass any of the following values:
- A path string to load a syntax file from the given path. For more details about paths, see the Paths section.
- Raw bytes from which the syntax should be decoded.
- An array where each item is one the above.
Show example

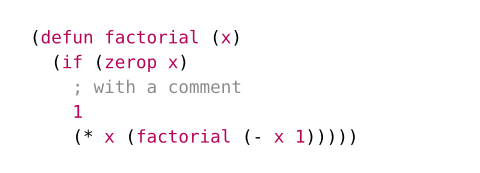

#set raw(syntaxes: "SExpressions.sublime-syntax")
```sexp
(defun factorial (x)
(if (zerop x)
; with a comment
1
(* x (factorial (- x 1)))))
```
()The theme to use for syntax highlighting. Themes should be in the
tmTheme file format.
You can pass any of the following values:
none: Disables syntax highlighting.auto: Highlights with Typst's default theme.- A path string to load a theme file from the given path. For more details about paths, see the Paths section.
- Raw bytes from which the theme should be decoded.
Applying a theme only affects the color of specifically highlighted
text. It does not consider the theme's foreground and background
properties, so that you retain control over the color of raw text. You
can apply the foreground color yourself with the text function and
the background with a filled block. You could also use
the xml function to extract these properties from the theme.
Show example

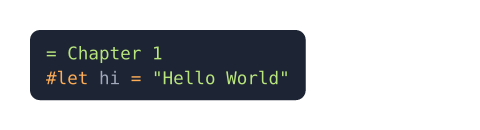

#set raw(theme: "halcyon.tmTheme")
#show raw: it => block(
fill: rgb("#1d2433"),
inset: 8pt,
radius: 5pt,
text(fill: rgb("#a2aabc"), it)
)
```typ
= Chapter 1
#let hi = "Hello World"
```
autotab-sizeSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
tab-sizeset rule, changing the default value used thereafter.The size for a tab stop in spaces. A tab is replaced with enough spaces to align with the next multiple of the size.
Show example

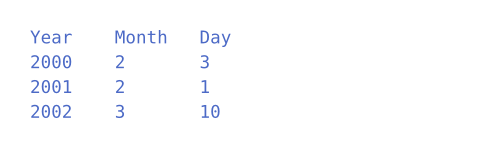

#set raw(tab-size: 8)
```tsv
Year Month Day
2000 2 3
2001 2 1
2002 3 10
```
2DefinitionsDefinitionsThese functions and types can have related definitions. To access a definition, specify the name of the function or type, followed by the definition name separated by a period.
lineElementElementElement functions can be customized with set and show rules.
lineset and show rules.A highlighted line of raw text.
This is a helper element that is synthesized by raw elements.
It allows you to access various properties of the line, such as the line number, the raw non-highlighted text, the highlighted text, and whether it is the first or last line of the raw block.
raw.line(,,,)->numberRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
numberThe line number of the raw line inside of the raw block, starts at 1.
countRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
countThe total number of lines in the raw block.
textRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
textThe line of raw text.
bodyRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
bodyThe highlighted raw text.
